Features and Functions

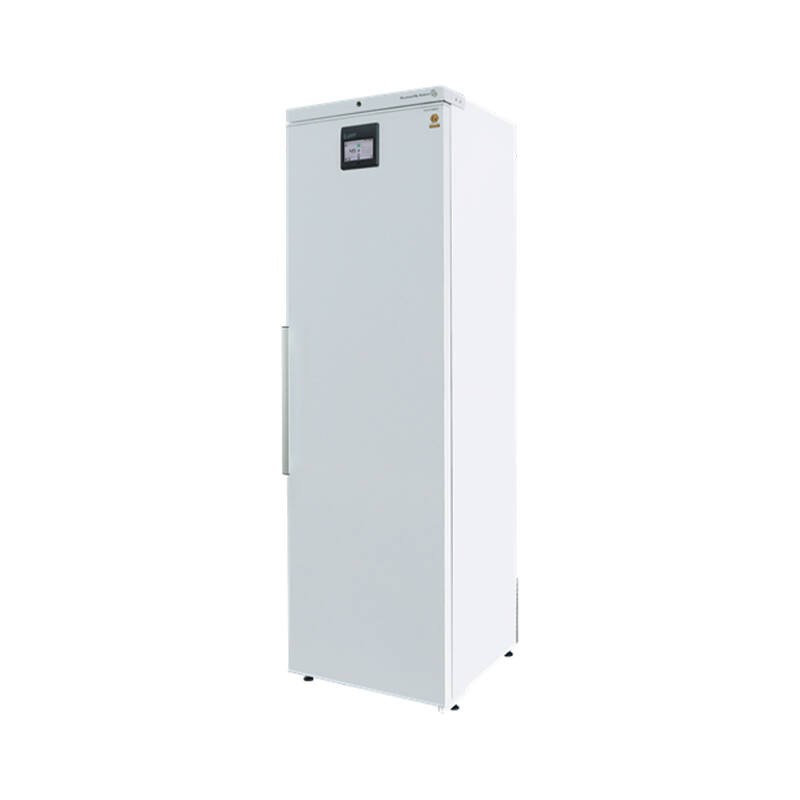

The MFZ427-25A is a high-performance upright biomedical freezer designed for the secure storage of large quantities of temperature-sensitive products, particularly in hospitals, pharmaceutical, biotechnology, and veterinary settings. Thanks to its robust design and advanced refrigeration technology, it meets critical low-temperature storage requirements.
It offers a net volume of 361 liters with an adjustable temperature range from -5°C to -25°C. Its variable-speed compressor (Adaptive Cooling) ensures uniform cooling and controlled energy consumption. It features a dynamic ventilated cooling system that guarantees even temperature distribution, enhanced by No-Frost® automatic defrosting.
Its i-Care touchscreen interface allows precise control with automatic data logging, built-in alarms, and export via USB port.
Compliant with requirements
The MFZ427-25A model is DIN13277 - DX15140 certified and complies with the ATEX directive, ensuring the safety and reliability of biomedical refrigeration equipment. It incorporates multiple security levels: temperature alarm, door alarm, power failure, sensor alarm, key lock, 24-hour backup battery for the controller, and dry contact for connection to a monitoring system.
Storage Reliability
Designed for thermal stability, the MFZ427-25A guarantees temperature uniformity of ±3°C and stability of 0.6°C. It reaches -20°C in 110 minutes and can maintain a temperature below -10°C for 72 minutes without power, ensuring sample protection even in the event of a power outage.
The reversible solid door with soft-close <90° and hold-open >90°, combined with the 5 solid shelves and 1 half-shelf in perforated aluminum, optimizes accessibility and storage capacity. The thick (50 mm) polyurethane insulation with cyclopentane guarantees excellent cold retention.
Technical Specifications
- Gross/Net Volume: 427 L / 361 L
- Temperature Range: -5°C to -25°C
- Temperature Uniformity: ±3.0°C | Stability: 0.6°C
- Consumption: 3.77 kWh/24h (-25°C) | 3.18 kWh/24h (-20°C)
- Controller: i-Care touchscreen, USB port, alarm & temperature recording
- Alarms: high/low temperature, door, probe, power supply
- Staying time at -10°C: 72 min without power supply
- External dimensions: 2002 × 595 × 642 mm
- Internal dimensions: 1827 × 475 × 495 mm
- Refrigerant: R600a – 80 g
- Noise level: 50 dB
- Certifications: DIN13277, ATEX
Other options available
The MFZ427-25A can be equipped with optional casters for mobility and features a 20 mm probe port for integrating external monitoring systems. For other capacities, temperatures, or configurations, contact us to discover our other biomedical models.
Door open alarm
Power failure alarm
