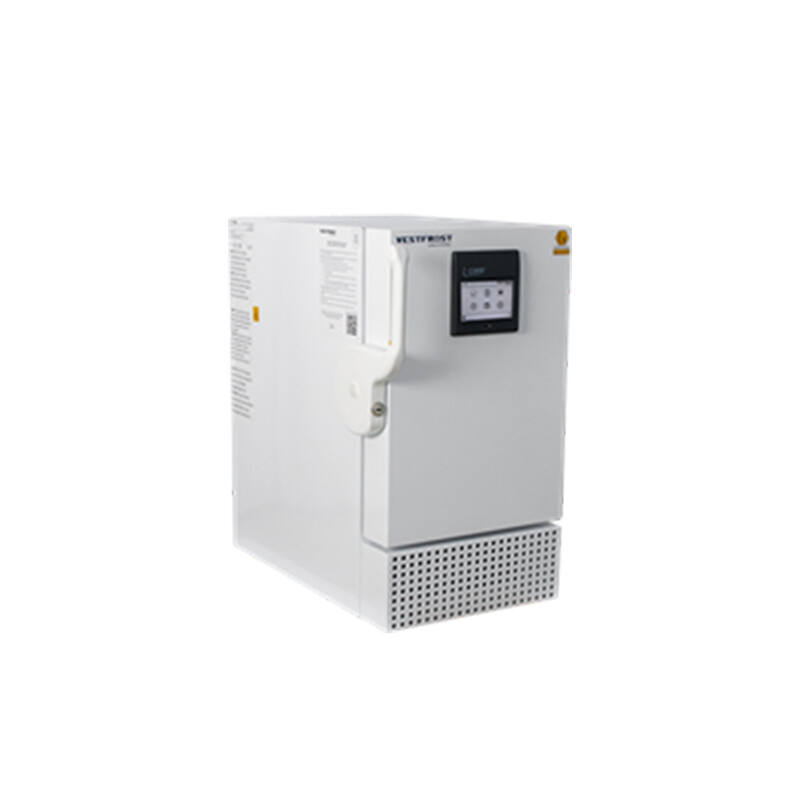

MFZ007-86A Laboratory Medical Freezer

The MFZ007-86A is a ultra-low temperature biomedical mini freezer specifically designed for the storage of highly sensitive samples in space-constrained environments. With its 7-liter capacity and performance down to -86°C, it is ideal for laboratories, hospital wards, research centers, or restricted-access areas requiring optimal storage at very low temperatures.

Features and Functions

This model combines a compact size with high-precision technical performance. It is equipped with a variable-speed compressor and uses a natural refrigerant (R2), which is more environmentally friendly. Its 120 mm reinforced insulation system ensures effective maintenance of extreme temperatures.

The i-Care controller with touchscreen allows real-time temperature monitoring with integrated graphical curves, data logging, and USB export. The MFZ007-86A also features critical alarms: high/low temperature, probe failure, door open, and power failure.

Compliant with requirements

This freezer is DIN13277 - DX15140 and ATEX certified, ensuring its compliance with the strictest biomedical safety standards. It is equipped with a dry contact for integration into a monitoring system, and a 20 mm probe port for installing external sensors or tracers. Its robust and stable design ensures reliable storage even in the most demanding conditions.

Storage Reliability

The MFZ007-86A achieves a temperature range of -20°C to -86°C with a thermal uniformity of ±2.5°C. It reaches -75°C in 132 minutes. Its controlled consumption (2.94 kWh/24h at -80°C) and quiet operation (<48 dB) make it an optimal choice for shared or noise-sensitive spaces.

Its painted steel (exterior) and stainless steel (interior) construction guarantees excellent durability and perfect hygiene in medical or research environments.

Technical Specifications

• Volume: 7 liters
• Temperature range: -20°C to -86°C
• Average temperature: -80°C | Uniformity: ±2.5°C
• Downtime: 132 min at -75°C
• Consumption: 2.94 kWh/24h at -80°C | 1073 kWh/year
• Noise level: <48 dB
• Refrigerant: Nature R – 2 circuits, 109 g
• External dimensions: 732 × 457 × 650 mm
• Internal dimensions: 310 × 150 × 145 mm
• Controller: i-Care touchscreen with curve and USB port
• Alarms: temperature, door, probe, power supply
• Certifications: DIN13277 – DX15140 | ATEX

Other options available

Thanks to its small size, the MFZ007-86A can be used alone or alongside larger models. For other capacities, or for versions with casters, glass doors, or network integration, contact us to explore a solution tailored to your space and storage requirements.
