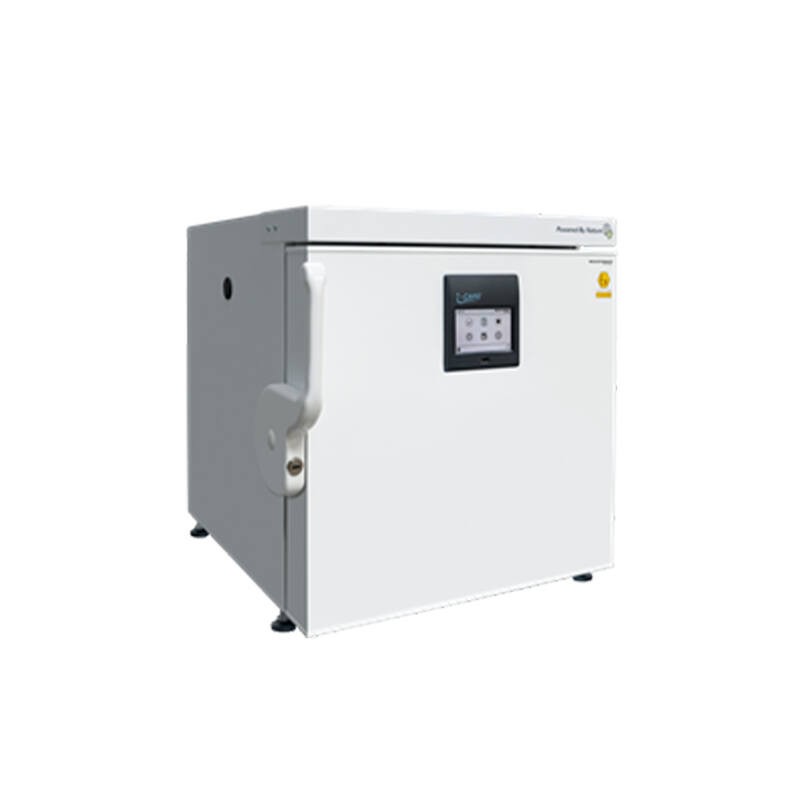

The MFZ037-86A is an ultra-low temperature biomedical freezer designed for the safe storage of temperature-sensitive products at -86°C. Its compact size and 37-liter capacity make it ideal for laboratories, hospitals, biobanks, or research centers where space is limited but thermal precision is essential.
Features and Functions
This compact freezer combines high performance with a small footprint. It uses variable-speed compressor cooling technology combined with a natural refrigerant (R2), providing a sustainable and eco-friendly solution. The thick 120 mm insulation ensures optimal preservation at very low temperatures, even in the event of a temporary power outage.
The i-Care touchscreen controller provides intuitive access to all parameters, with graphic display of temperature curves, alarm history, and data export via USB. It includes all critical alarms: temperature out of range, faulty probe, door opening, power outage, low battery, etc.
Compliant with requirements
The MFZ037-86A complies with DIN13277 - DX15140 and ATEX standards, ensuring safe use in regulated biomedical environments. It is equipped with a probe port (Ø 20 mm) and a dry contact allowing connection to external supervision or monitoring systems.
Its solid door with automatic closing <90° and hold-open >90° guarantees safety and ease of use. The interior is made of stainless steel for enhanced hygiene, while the epoxy-coated steel exterior ensures robustness and longevity.
Storage reliability
The MFZ037-86A reaches -75°C in 118 minutes. It guarantees thermal stability of 0.5°C and uniformity of ±2.5°C, providing maximum safety for sensitive samples. It maintains a temperature below -60°C for 154 minutes without power, ensuring cold chain continuity in the event of an incident.
Technical Specifications
- Gross/Net Volume: 37 L / 33 L
- Temperature Range: -20°C to -86°C
- Average Temperature: -80°C | Stability: 0.5°C | Uniformity: ±2.5°C
- Downtime: 118 min to -75°C
- Maintained at -60°C: 154 min without power supply
- Consumption: 2.94 kWh/24h | 1,073 kWh/year
- Noise level: <48 dB
- Refrigerant: Natural R – 2 circuits (117 g)
- External dimensions: 885 × 595 × 695 mm
- Internal dimensions: 330 × 400 × 250 mm
- Equipment: 1 aluminum tray (option: shelves)
- Controller: i-Care touchscreen with graphic curve, alarms, USB port
- Certifications: DIN13277 – DX15140 | ATEX
Other options available
The MFZ037-86A can be customized with modular internal accessories, casters for mobility, or integrated into a multi-station installation. For any specific ultra-low temperature requirements with a small footprint, contact us for a tailored solution.
